UAV Accessories Magnesium Alloy Parts Processing By Precision
Machining Service
We can provide Precise Tolerance with +/- 0.001mm of CNC Machining
Magnesium Alloy Services.
JYH's Machining Magnesium Alloy service is a good choice for high
quality, ISO 9001 certified parts.
Magnesium
Magnesium is lightweight and has excellent castability and high
specific strength, which gives it application in the automotive
industry.
Magnesium has applications in producing engine blocks, gearboxes,
clutch housings, wheels and engine cradles, and oil pans.
Lead time: <10 days
Max Part Size: 300 x 100 x 200 cm
Application Range:
Car engine accessory bracket, clutch housing, gearbox housing,
instrument panel frame, steering wheel frame, seat frame, valve
body mobile phone,Drone/camera.
The Characteristics of Magnesium Parts Can be as follows:
- CNC machining magnesium product have high strength, the ratio of
strength to quality of magnesium alloy has a capacity.
- Magnesium parts have small elastic modulus, good rigidity, strong
shock resistance, and are not easily deformed after long-term use.
- Magnesium machining product have good resistance to electromagnetic
interference and shielding.
Type
| Tolerance |
Linear dimension
| +/- 0.015 mm
+/- 0.002 inch
|
| Hole diameters (not reamed) | +/- 0.015 mm
+/- 0.002 inch
|
| Shaft diameters | +/- 0.015 mm
+/- 0.002 inch
|
| Part size's limit | 850 * 650 *550 mm
39.0 * 23.5 * 23.5 inch |
Available material
| Material Type | Tensile Strength | Elongation | Yield Stress | Density | Maximum Temperature | Tensile Modulus |
| AZ91D | 230MPa | 3.0% | 150MPa | 1.81g/㎤ | 595℃ | 44.8GPa |
| AZ80A | 290MPa | 2.0~5.0% | 179MPa | 1.81g/㎤ | 595℃ | 45Gpa |
| AZ31B | 280MPa | 8% | 160MPa | 1.76g/㎤ | 595℃ | 46GPa |
| ZK61B | 330Mpa | 12% | 178MPa | 1.81g/㎤ | 630℃ | 47GPa |
| AZ61B | 280Mpa | 14% | 165Mpa | 1.81g/㎤ | 653℃ | 45GPa |
| AM60B | 221MPa | 4.0% | 131Mpa | 1.81g/㎤ | 428℃ | 44.8GPa |
Quality Inspection
- Customers' CAD drawings can be directly imported in the coordinate
measuring machines (CMM) for a direct comparison to the dimensions
that are taken from the physical part.All components and
sub-assemblies are 100% inspected,identified with a logo if
required and a final inspection is generated pertaining to all the
critical dimensions.
- All testing is conducted in a 20 degree Celsius climate-controlled
inspection room and the CMM is calibrated to
GB/T 16857.2-2006 (ISO10360-2:2001) standards.
Our payment method
Our shipping method
After sales service
Our workshop
FAQ:
1-Is magnesium hard to machine? - Drilling, milling, turning, and other processes are smoother when
using magnesium, and machining the material requires a
significantly lower cutting force and overall production time than
other metals.
|
2-Can you CNC magnesium? - Magnesium is a lightweight metal with high level of machining
ability that can be CNC machined to create parts with high strength
and excellent corrosion resistance. However, magnesium can be
difficult to machine due to its tendency to ignite or explode if
proper precautions are not taken
|
3-How many machines do you have? - We currently have more than 60 machines: roughly 40+ CNC mills and
30 Injection mold machine,10+ 3D printers. With our long history of
growth, this number is always changing.
|
4-How do I get a quote? - To get a quote for all of our services, simply send us your 3D CAD
model to us. You'll get an interactive quote within hours with free
design feedback. If there are problem areas in the submitted
design,we will provide free design feedback(DFM).
|
5-What types of files do you accept? - We can accept native SolidWorks or ProE files as well as solid 3D
CAD models from other CAD systems output in IGES (.igs), STEP
(.stp), ACIS (.sat) or Parasolid (.x_t or .x_b) format.
|
6-Do you provide First Article of Inspection (FAI) Service? - We can provide FAI as part of the unlimited offer.
|
7-What is payment term does your company can be acceptable? - We can accept T/T (50 prepayment should be paid before start the
production; the 50% remaining payment should be paid after finish
the project).
|

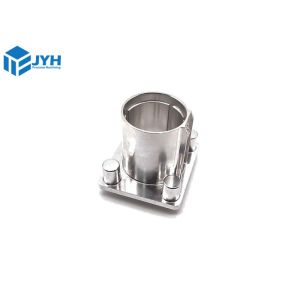

Magnesium Sample Pictures for your reference:
JYH technology, Your Professional CNC Machining Magnesium Alloy
Services Partner!
